Techdata: Ubiquiti EdgeRouter Lite

Usage

  • IMPORTANT : Edit this page only via the LEFT edit button below the box
  • After editing, please enter a short summary of your edit:
    • Which field has been changed? (e.g. Ethernet 100M ports)
    • What have you done? (e.g. added / updated / deleted / …)
    • Why has it been changed? / What is your datasource? (acc. devicepage / wikidevi / forum …)
    • Example summary: Ethernet 100M ports updated according wikidevi
  • For adding new dropdown values, Contact an OpenWrt wiki admin (tmomas)
  • For conventions / allowed values, see below
  • For general usage help, see Dataentry template background
  • Searching for pure technical facts? See table below.
  • Searching for installation instructions, bootlogs, other info? See link to Device Page below.

Dataentry

Device Type:
Router
Brand:
Ubiquiti
Model:
EdgeRouter Lite
Availability:
unknown 2018
Where available:
¿
Supported Since Commit:
https://git.lede-project.org/?p=source.git;a=commit;h=3a2040ffee99053070cd3f0424f40f64ba6403c9
Supported Since Rel:
14.07
Supported Current Rel:
18.06.5
Target:
octeon
Subtarget:
generic
Package architecture:
mips64_octeon
Bootloader:
U-Boot
CPU:
Cavium CN5020
CPU Cores:
2
CPU MHz:
500
Flash MB:
4, 4096
RAM MB:
512
Ethernet 100M ports:
-
Ethernet Gbit ports:
3
Switch:
¿
VLAN:
No
Modem:
-
WLAN Hardware:
-
WLAN 2.4GHz:
-
WLAN 5.0GHz:
-
WLAN driver:
none
Detachable Antennas:
-
Bluetooth:
¿
USB ports:
1x 2.0
SATA ports:
-
Video ports:
¿
Audio ports:
¿
Phone ports:
¿
Serial:
Yes
Serial connection parameters:
115200 / 8N1
JTAG:
¿
LED count:
¿
Button count:
¿
GPIOs:
¿
Power Supply:
12 VDC, 1.0 A
Device Page:
edgerouter.lite
OWrt Forum Topic URL:
https://forum.openwrt.org/viewtopic.php?id=49908
WikiDevi URL:
https://wikidevi.com/wiki/Ubiquiti_Networks_EdgeRouter_LITE
OEM Device Homepage URL:
https://www.ubnt.com/edgemax/edgerouter-lite/
Firmware OEM Stock URL:
http://dl.ubnt.com/firmwares/edgemax/v1.7.0/ER-e100.v1.7.0.4783374.tar
Firmware OpenWrt Upgrade URL:
http://downloads.openwrt.org/releases/18.06.5/targets/octeon/generic/openwrt-18.06.5-octeon-erlite-squashfs-sysupgrade.tar
Firmware OpenWrt snapshot Upgrade URL:
http://downloads.openwrt.org/snapshots/targets/octeon/generic/openwrt-octeon-erlite-squashfs-sysupgrade.tar
Installation method(s):
U-Boot USB recovery, see devicepage
Recovery method(s):
U-Boot USB recovery

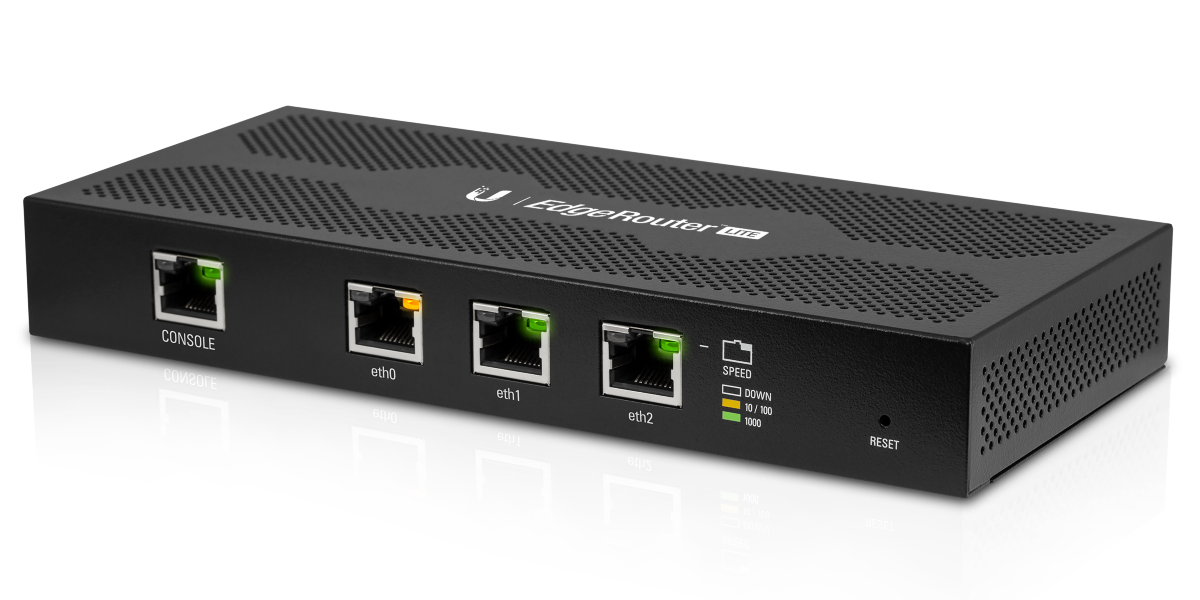

Picture:
picture: genericrouter1.png
Comments:
4MB flash for bootloader; 4GB flash (via internal USB flash drive) for firmware.
