Techdata: Edge-corE ECW5211

The development branch can contain experimental code that is under active development and should not be used for production environments. Snapshot images may support additional hardware; however, it is experimental, considered unstable, and sometimes won't compile.

Prebuilt snapshot images do not come with any web interface or GUI. You will need to be comfortable using a command line and remote shell to install one yourself → How to install LuCI

Usage

  • IMPORTANT : Edit this page only via the LEFT edit button below the box
  • After editing, please enter a short summary of your edit:
    • Which field has been changed? (e.g. Ethernet 100M ports)
    • What have you done? (e.g. added / updated / deleted / …)
    • Why has it been changed? / What is your datasource? (acc. devicepage / wikidevi / forum …)
    • Example summary: Ethernet 100M ports updated according wikidevi
  • For adding new dropdown values, Contact an OpenWrt wiki admin (tmomas)
  • For conventions / allowed values, see below
  • For general usage help, see Dataentry template background
  • Searching for pure technical facts? See table below.
  • Searching for installation instructions, bootlogs, other info? See link to Device Page below.

Dataentry

Device Type:
WiFi AP
Brand:
Edge-corE
Model:
ECW5211
FCCID:
http://¿
Availability:
unknown 2020
Where available:
¿
Supported Since Commit:
https://git.openwrt.org/?p=openwrt/openwrt.git;a=commit;h=4488b260a02e169d6902df44debbe9b3c8e001cc
Supported Current Rel:
snapshot
Gluon support:
unknown
Target:
ipq40xx
Subtarget:
generic
Package architecture:
arm_cortex-a7_neon-vfpv4
Bootloader:
U-Boot
CPU:
Qualcomm Atheros IPQ4018
CPU Cores:
4
CPU MHz:
¿
Flash MB:
128NAND
RAM MB:
256
Ethernet 100M ports:
-
Ethernet Gbit ports:
2
Switch:
¿
VLAN:
Yes
Modem:
-
WLAN Hardware:
Qualcomm IPQ4018
WLAN 2.4GHz:
b/g/n
WLAN 5.0GHz:
a/n/ac
WLAN driver:
ath10k
Detachable Antennas:
-
Bluetooth:
BLE
miniPCI ports:
¿
USB ports:
1x 2.0
SATA ports:
-
Video ports:
-
Audio ports:
-
Phone ports:
-
Serial:
¿
Serial connection parameters:
¿
JTAG:
¿
LED count:
3
Button count:
1
GPIOs:
-
Power Supply:
12 VDC, 1.0 A, PoE 802.3af
OpenVPN performance:
¿
Wireguard performance:
¿
WikiDevi URL:
http://¿
OEM Device Homepage URL:
https://wifi.edge-core.com/products/wireless-access-point/ECW5211-L
Firmware OEM Stock URL:
http://¿
Firmware OpenWrt snapshot Install URL:
http://downloads.openwrt.org/snapshots/targets/ipq40xx/generic/openwrt-ipq40xx-generic-edgecore_ecw5211-squashfs-nand-factory.ubi
Firmware OpenWrt snapshot Upgrade URL:
http://downloads.openwrt.org/snapshots/targets/ipq40xx/generic/openwrt-ipq40xx-generic-edgecore_oap100-squashfs-nand-sysupgrade.bin
Installation method(s):
unknown
Recovery method(s):
unknown

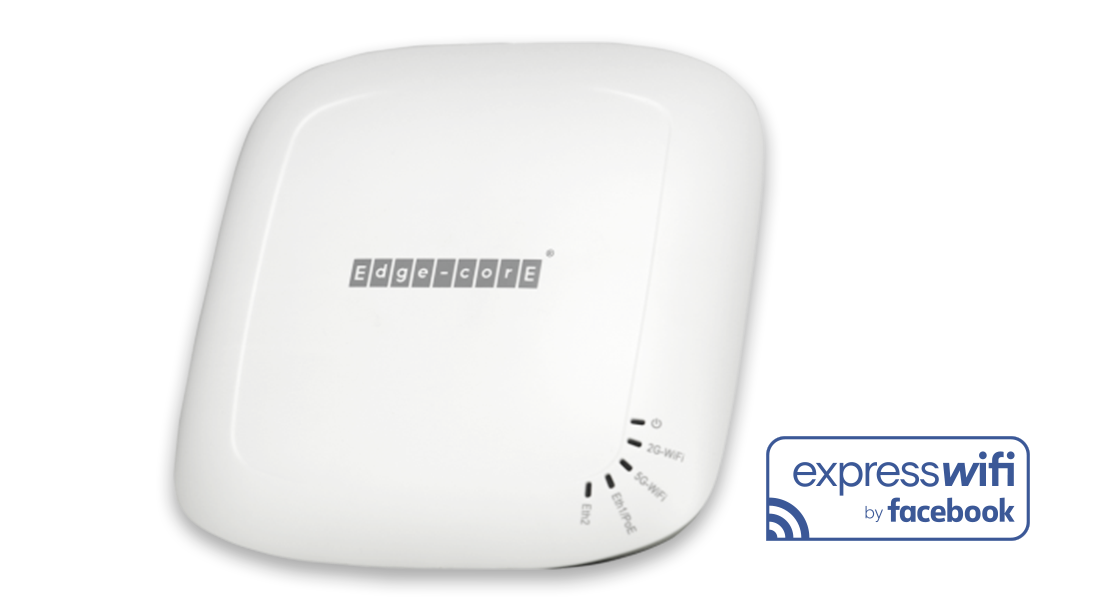

Picture:
picture: genericrouter1.png
