AVM FRITZ!Box 7490

:!: At this moment (December 2018) there is no support: FORUM DISCUSSION

Note Regarding Potential Hardware Versions

AVM supply has 3 different OEM firmware versions for the 7490. At this time, it is known that Germany use AnnexB, while international use AnnexA so at a minimum, there must be at least 2 hardware versions, but with the 3rd firmware image for Belgium there might even be 3 different hardware versions of this device. The bulk of the documentation below is based on the International version of the 7490 (which also had markings for AU/NZ included in few places).

If any other users can identify any clear hardware version differences between this documentation and their own device, please summarize and add the info to this section here. FIXME

git clone -b for_fritzbox7490 https://github.com/hvegh/openwrt.git

First try if you can get an initramfs-image to run on your device this will keep the original software intact. The use of a 3.3v serial cable (for example https://www.adafruit.com/product/954) is highly recommended, in order to stop Fritz from booting press 'd' on the console.

For advanced users, once the initramfs image is working:

  • Backup your contents of the NAND and SPI flash partitions.
  • Flash the kernel at the “kernel” partition (mtd2)* and the ubi-rootfs to the “ubi” partition (mtd5)
mtd erase kernel
mtd write /tmp/openwrt-lantiq-xrx200-avm_fritz7490-ubifs-eva-kernel.bin kernel
ubiformat /dev/mtd5 -f /tmp/openwrt-lantiq-xrx200-avm_fritz7490-ubifs-eva-filesystem.bin
  • Check and set the parameters in the EVA bootloader:
linux_fs_start        1

If not correct, then adjust the parameter with:

setenv linux_fs_start  1

*Note, you could also decide to flash the kernel at the “reserved-kernel” partition, then set linux_fs_start to 0 in that case.

ModelSoCCPU MHzFlash MBRAM MBWLAN HardwareWLAN2.4WLAN5.0100M portsGbit portsModemUSB
FRITZ!Box 7490Lantiq XWAY VRX288 / PSB 80920 EL5008, 512NAND256Qualcomm Atheros QCA9558, Qualcomm Atheros QCA9880b/g/na/n/ac-4VDSL22x 3.0

Overview

FIXME

General
Brand AVM
Model FRITZ!Box 7490
Versions
Device Type WiFi Router
Availability Available 2019
Comments - general PR #2738 pending; See also https://boxmatrix.info/wiki/FRITZ!Box_7490 (old http://www.wehavemorefun.de/fritzbox/FRITZ!Box_Fon_WLAN_7490)
OpenWrt Support
Supported Since Commit
Supported Since Release
Supported Current Release PR pending
Unsupported
Hardware
Bootloader EVA
Target lantiq
System-On-Chip
CPU MHz 500
Flash MB 8, 512NAND
RAM MB 256
Network
Ethernet 100M ports -
Ethernet Gbit ports 4
Switch Atheros AR8035
Modem VDSL2
VLAN Yes
Comments - network ports
Wireless
WLAN 2.4GHz b/g/n
WLAN 5.0GHz a/n/ac
WLAN Hardware Qualcomm Atheros QCA9558, Qualcomm Atheros QCA9880
Detachable Antennas -
Comments - WLAN
Interfaces
USB ports 2x 3.0
SATA ports -
Serial Yes
JTAG Yes
Comments - USB & SATA ports
Misc
LED count 5
Button count 2
Power supply 12 VDC, 2.5 A
Links
Forum Topic URL
WikiDevi URL https://wikidevi.wi-cat.ru/AVM_FRITZ!Box_7490
OEM device homepage URL https://en.avm.de/products/fritzbox/fritzbox-7490/technical-data/
Firmware OEM Stock URL http://download.avm.de/fritzbox/fritzbox-7490/
Firmware OpenWrt Install URL
Firmware OpenWrt Upgrade URL
Edit the underlying data View/Edit data
Instruction set MIPS
Vendor Lantiq
bootloader EVA Revision: 1.1964 Version: 2964
System-On-Chip PSB 80920 EL
CPU @Frq 2 CPU - MIPS 34Kc VR9 on 500MHz/250MHz/250MHz
Flash size 8192 KiB + 524288 KiB / 512MiB
Flash Chip 25L8035EM2I-10G MXIC + MACRONIX FIXME or Micron MT29F4G08ABADAWP
RAM size 512 MiB
RAM Chip 2x E1108AJBG-8E
Hardware Bridge Xilinx Spartan XC3S100E
Wireless No1 distinct Chip: Qualcomm-QCA9558-AT4A w/ 3×3 MIMO for 2.4GHz 802.11b/g/n
Wireless No1 RAM size 128 MiB
Wireless No1 RAM Chip Winbond W9751G6KB-25
Wireless No2 distinct Chip: Qualcomm-QCA9880 AR1A w/ 3×3 MIMO for 2.4/5GHz 802.11a/b/g/n/ac
Wireless antenna 5x PCB, 1x Airgain N5X20SC (U.FL)
switch 4x Gigabit Atheros 8035
Modem xDSL
Modem Chip Lantiq XWAY v1.1 PSB 80190
USB distinct Chip: Renesas-µPD720202 w/ on the PCIe bus 2x USB 3.0
DECT YES
Serial internal:GND/TXD/RXD/3.3V:115200 N 8 R
JTAG Yes 2×14

Note: This will void your warranty!

Four screws on the corners on bottom. Once screws removed, there is a small clip at the front that needs some gentle assistance.

Case Bottom Case Bottom

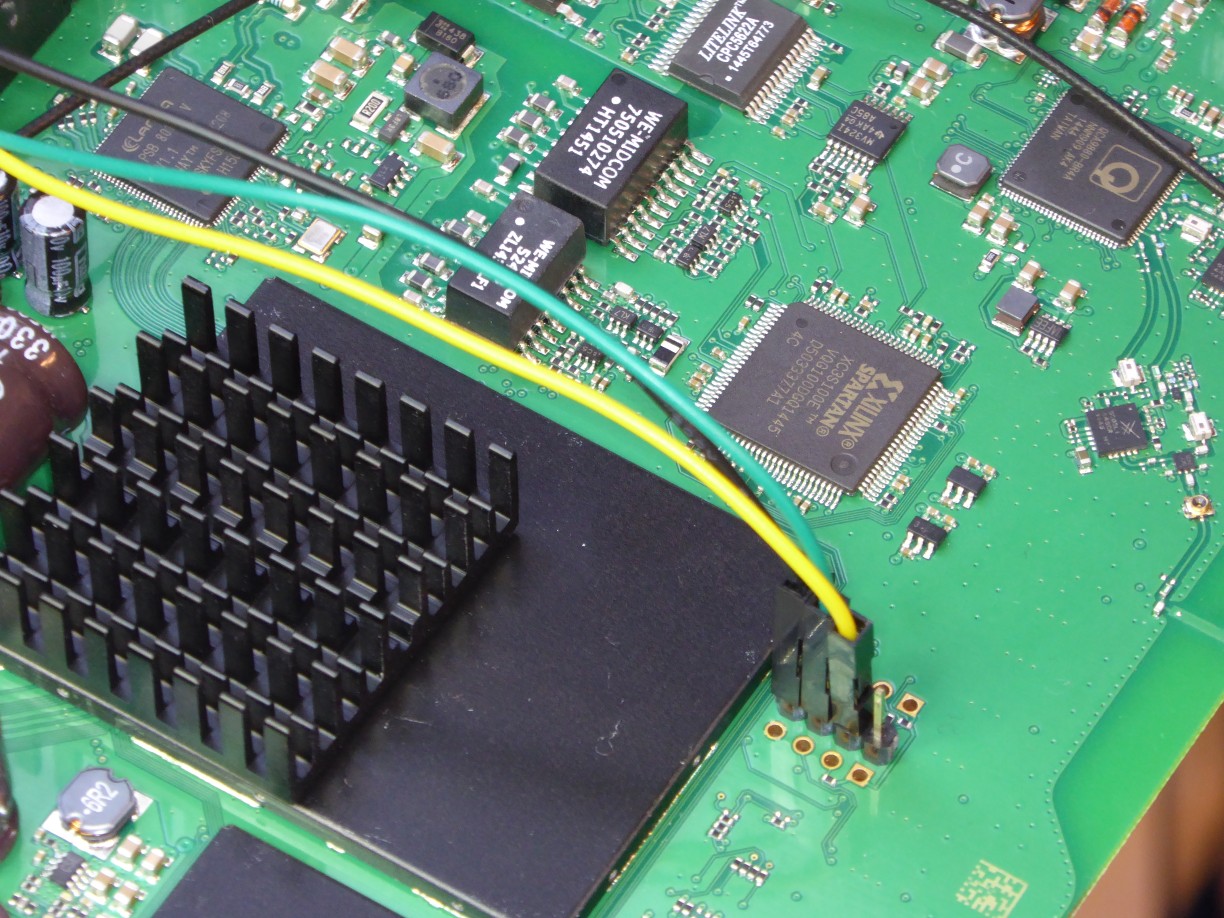

Main PCB PCB with serial Pinout

port.serial general information about the serial port, serial port cable, etc.

The serial ports are located near the processing unit (with the heat sink on top): the serial port is the second row from left.

The PCB has 3 columns of pin headers, columns from left to right and rows from top to bottom: (when looking at the board with the DSL port on the top right).

                 serial port of Lantiq xRX200 soc.
                /   Serial port of Qualcomm Atheros QCA9558 soc. for WASP
               |   /
    column:  1 2   3
row:
 1-GND->     O O   O
 2-TX->      O O   O
 3-RX->      O O   O
 4-3.3V->    O O   O
Serial connection parameters: 115200n8r (<baud><parity><bits><flow>)
Example using pyserial:
pyserial-miniterm /dev/ttyUSB0 115200 –raw –eol CR

More PCB photos photo taken from mikrocontroller.net

port.jtag general information about the JTAG port, JTAG cable, etc.

How to connect to the JTAG Port of this specific device:
FIXME

Uses EVA.

Refer to EVA's tech reference for environment dump and commands its minimal shell supports: eva-7490-techref

ROM VER: 1.1.4 CFG 05 ** START ^MRVEC bf200000 ^M[\] ^M(AVM) EVA Revision: 1.1964 Version: 2964 ^M(C) Copyright 2005 AVM Date: Nov 27 2013 Time: 14:33:10 (1) 3 0x0-0x740D [FLASH:] MACRONIX Uniform-Flash 1MB 256 Bytes WriteBuffer [FLASH:](Eraseregion [0] 16 sectors a 64kB) [NAND:] 512MB MICRON 2048 Pagesize 128k Blocksize 4096 Blocks 8Bit 1 CS HW [SYSTEM:] VR9 on 500MHz/250MHz/250MHz .Atheros 8030/35 detected Eva_AVM >##.................................................. Lantiq xDSL CPE VR9 phym = 10000000, mem = 10000000, max_pfn = 00010000 Reserving memory for CP1 @0xb0000000, size 0x00000000 plat_device_tree_setup: AVM hardware subrevision 6 plat_device_tree_setup: using Fallback device-tree of AVM hardware subrevision 0 DT: d0 0d fe ed 00 00 14 36 [ 0.000000] Linux version 3.10.107 (jpluschke@GU_IQ17p2_NL1_vr9) (gcc version 5.4.0 (Buildroot 2016.05-g4d7c863) ) #1 SMP Tue Sep 11 17:57:02 CEST 2018 [ 0.000000] [env_init] 0x81018160[0] [ 0.000000] [env_init] 0x810181a0[1] [ 0.000000] [env_init] 0x810182a0[2] [ 0.000000] [env_init] switch to ram location [ 0.000000] [init_avm_kernel_config] AVM Kernel Config (ptr 808a8000) [ 0.000000] [init_avm_kernel_config] AVM Kernel Config: module memory entry [ 0.000000] [init_avm_kernel_config] AVM Kernel Config: version info entry [ 0.000000] [init_avm_kernel_config] AVM Kernel Config: device-tree for subrev 0 found [ 0.000000] bootconsole [early0] enabled [ 0.000000] CPU0 revision is: 00019556 (MIPS 34Kc) [ 0.000000] Determined physical RAM map: [ 0.000000] memory: 10000000 @ 00000000 (usable) [ 0.000000] Initrd not found or empty - disabling initrd [ 0.000000] [module-alloc] use 0x70c000 bytes at 0x81204000 [ 0.000000] Detected 1 available secondary CPU(s) [ 0.000000] PERCPU: Embedded 7 pages/cpu @81914000 s7328 r8192 d13152 u32768 [ 0.000000] Kernel command line: console=ttyS0,115200n8r nor_size=0MB sflash_size=1024KB nand_size=512MB ethaddr=38:10:D5:xx:xx:xx [ 0.000000] [NAND] nand_size = 0x20000000 [ 0.000000] PID hash table entries: 1024 (order: 0, 4096 bytes) [ 0.000000] Dentry cache hash table entries: 32768 (order: 5, 131072 bytes) [ 0.000000] Inode-cache hash table entries: 16384 (order: 4, 65536 bytes) [ 0.000000] Writing ErrCtl register=0006c520 [ 0.000000] Readback ErrCtl register=0006c520 [ 0.000000] Memory: 242328k/262144k available (6291k kernel code, 19816k reserved, 2628k data, 288k init, 0k highmem) [ 0.000000] Hierarchical RCU implementation. [ 0.000000] NR_IRQS:181 [ 0.000000] SRSConf0 0x3feffbfe: SRS1: 0xffffffff, SRS2 0xffffffff, SRS3 0xffffffff [ 0.000000] Lantiq ICU driver, version 3.0.1, (c) 2001-2011 Lantiq Deutschland GmbH [ 0.000000] Console: colour dummy device 80x25 [ 0.000000] console [ttyS0] enabled, bootconsole disabled [ 0.000000] console [ttyS0] enabled, bootconsole disabled [ 0.020000] Calibrating delay loop... 331.77 BogoMIPS (lpj=1658880) [ 0.080000] pid_max: default: 32768 minimum: 301 [ 0.080000] Security Framework initialized [ 0.080000] Mount-cache hash table entries: 512 [ 0.090000] Performance counters: mips/34K PMU enabled, 2 32-bit counters available to each CPU, irq 6 [ 0.100000] CPU1 revision is: 00019556 (MIPS 34Kc) [ 0.180000] Brought up 2 CPUs [ 0.180000] [yield_context_init] cpu=1 tc=2 mask=2301 [ 0.190000] [yield_context_init] cpu=0 tc=3 mask=410 [ 0.190000] devtmpfs: initialized [ 0.210000] pinctrl core: initialized pinctrl subsystem [ 0.210000] Creating Config Table [ 0.210000] [avm_generate_hw_config_table_from_device_tree] gpio_cnt: 46 [ 0.220000] NET: Registered protocol family 16 [ 0.230000] avm_check_cpu_features: mips-options: 0x006d638b icache.flags 0x00000000 dcache.flags 0x00000004 isa_level 0x00000063 ases 00000031 [ 0.240000] Reboot Status is: Soft-Reboot [ 0.240000] avm_alloc_page_extension node_extension_table[0] entries=65536 (size=262144) alloced [ 0.250000] [avmnet] [avmnet_cfg_init] Driver version: 6.295.2.2-iq17p2_nl1-jz32984_revert_NL1Di 11. Sep 17:53:51 CEST 2018 [ 1.060000] Lantiq PCIe Root Complex driver, version 2.0.0, (c) 2001-2011 Lantiq Deutschland GmbH [ 1.100000] bio: create slab <bio-0> at 0 [ 1.110000] PCI host bridge to bus 0000:00 [ 1.110000] pci_bus 0000:00: root bus resource [mem 0x1c000000-0x1cffffff] [ 1.120000] pci_bus 0000:00: root bus resource [io 0x1d800000-0x1d8fffff] [ 1.130000] pci_bus 0000:00: No busn resource found for root bus, will use [bus 00-ff] [ 1.130000] ifx_pcie_rc_class_early_fixup port 0: fixed pcie host bridge to pci-pci bridge [ 1.140000] pci 0000:00:00.0: BAR 8: assigned [mem 0x1c000000-0x1c0fffff] [ 1.150000] pci 0000:01:00.0: BAR 0: assigned [mem 0x1c000000-0x1c001fff 64bit] [ 1.160000] pci 0000:00:00.0: PCI bridge to [bus 01] [ 1.160000] pci 0000:00:00.0: bridge window [mem 0x1c000000-0x1c0fffff] [ 1.170000] AVM PA for Linux version 3.10.107 (jpluschke@GU_IQ17p2_NL1_vr9) (gcc version 5.4.0 (Buildroot 2016.05-g4d7c863) ) #1 SMP Tue Sep 11 17:57:02 CEST 2018 [ 1.170000] (early init) [ 1.190000] NET: Registered protocol family 8 [ 1.190000] NET: Registered protocol family 20 [ 1.200000] Switching to clocksource MIPS [ 1.240000] NET: Registered protocol family 2 [ 1.250000] TCP established hash table entries: 2048 (order: 2, 16384 bytes) [ 1.260000] TCP bind hash table entries: 2048 (order: 2, 16384 bytes) [ 1.260000] TCP: Hash tables configured (established 2048 bind 2048) [ 1.270000] TCP: reno registered [ 1.270000] UDP hash table entries: 256 (order: 1, 8192 bytes) [ 1.280000] UDP-Lite hash table entries: 256 (order: 1, 8192 bytes) [ 1.280000] avm_pa: try to activate hw accelaration for pid 1 (ipv4) called from avm_pa_dev_pidhandle_register_with_ingress [ 1.290000] NET: Registered protocol family 1 [ 1.300000] pci 0000:01:00.0: xHCI HW not ready after 5 sec (HC bug?) status = 0x801 [ 1.310000] Lantiq CGU driver, version 1.1.32, (c) 2001-2011 Lantiq Deutschland GmbH [ 1.320000] IFX DMA driver, version ifxmips_dma_core.c:v1.0.17, (c) 2009 Infineon Technologies AG [ 1.320000] skb_shared_size:184 [ 1.340000] squashfs: version 4.0 (2009/01/31) Phillip Lougher [ 1.340000] ANTFS Module: Version 2.34 [ 1.340000] fuse init (API version 7.22) [ 1.350000] msgmni has been set to 473 [ 1.350000] io scheduler noop registered (default) [ 1.670000] ttyS0 at MMIO 0x1e100c00 (irq = 107) is a PORT_IFX_ASC [ 1.680000] ifx_usif_uart_init: uart_register_driver failed [ 1.680000] avm_net_trace: Up and running. [ 1.690000] [loadcontrol] set auto - scale=1 [ 1.690000] AVM_WATCHDOG: Watchdog Driver for AR7 Hardware (Version 1.0) [ 1.700000] [simple-profiling]:2 performance counters implemented, NEW_34K [ 1.710000] [simple-profiling]Enable Performance Counter 0 for Data cache load/stores (User Supervisor Kernel Exception TC-ID=0) all cores tc: 0 [ 1.720000] [simple-profiling]Enable Performance Counter 1 for Data cache load/store misses (User Supervisor Kernel Exception TC-ID=0) all cores tc: 0 [ 1.730000] [simple-profiling]Enable Performance Counter 0 for Data cache load/stores (User Supervisor Kernel Exception TC-ID=1) all cores tc: 1 [ 1.750000] [simple-profiling]Enable Performance Counter 1 for Data cache load/store misses (User Supervisor Kernel Exception TC-ID=1) all cores tc: 1 [ 1.760000] [simple-profiling]Enable Performance Counter 0 for Main pipeline stalls (P) (User Supervisor Kernel Exception TC-ID=2) all cores tc: 2 [ 1.770000] [simple-profiling]Enable Performance Counter 1 for Cycles (P) (User Supervisor Kernel Exception TC-ID=2) all cores tc: 2 [ 1.790000] [simple-profiling]Enable Performance Counter 0 for Data cache load/stores (User Supervisor Kernel Exception TC-ID=3) all cores tc: 3 [ 1.800000] [simple-profiling]Enable Performance Counter 1 for Data cache load/store misses (User Supervisor Kernel Exception TC-ID=3) all cores tc: 3 [ 1.810000] [simple-profiling]all cores:performance-mode (round-robin): cpus on [ 1.820000] Lantiq Thermal Sensor driver, version 1.0.3, (c) 2001-2011 Lantiq Deutschland GmbH [ 1.830000] ifx_pmu_init: Major 244 [ 1.830000] Lantiq PMU driver, version 1.2.6, (c) 2001-2011 Lantiq Deutschland GmbH [ 1.840000] Lantiq GPIO driver, version 1.3.2, (c) 2001-2011 Lantiq Deutschland GmbH [ 1.850000] Infineon Technologies RCU driver version 1.0.7 [ 1.860000] loop: module loaded [ 1.870000] nbd: registered device at major 43 [ 1.900000] [HSNAND] Hardware-ECC activated [ 1.900000] ONFI param page 0 valid [ 1.900000] ONFI flash detected [ 1.910000] NAND device: Manufacturer ID: 0x2c, Chip ID: 0xdc (Micron MT29F4G08ABADAWP), 512MiB, page size: 2048, OOB size: 64 [ 1.920000] Scanning device for bad blocks [ 2.300000] Creating 6 MTD partitions on "ifx_hsnand": [ 2.310000] 0x000000000000-0x000000400000 : "kernel" [ 2.310000] 0x000000400000-0x000003400000 : "filesystem" [ 2.320000] 0x000003400000-0x000003800000 : "reserved-kernel" [ 2.330000] 0x000003800000-0x000006800000 : "reserved-filesystem" [ 2.340000] 0x000006800000-0x000006a00000 : "config" [ 2.340000] 0x000006a00000-0x000020000000 : "nand-filesystem" [ 2.350000] [TFFS3_Register_Panic_CB] registering panic callback for mtd ifx_hsnand [ 2.360000] [TFFS3_Register_Panic_CB] registering panic callback for mtd ifx_sflash [ 2.360000] Creating 3 MTD partitions on "ifx_sflash": [ 2.370000] 0x000000000000-0x000000040000 : "urlader" [ 2.380000] 0x000000040000-0x0000000a0000 : "tffs (1)" [ 2.380000] 0x0000000a0000-0x000000100000 : "tffs (2)" [ 2.390000] Lantiq SPI flash driver, version 2.0.2, (c) 2001-2011 Lantiq Deutschland GmbH [ 2.400000] tun: Universal TUN/TAP device driver, 1.6 [ 2.400000] tun: (C) 1999-2004 Max Krasnyansky <maxk@qualcomm.com> [ 2.410000] SWAPI: Registered character device [switch_api] with major no [81] [ 2.420000] i2c /dev entries driver [ 2.420000] cpuidle: using governor ladder [ 2.430000] cpuidle: using governor menu [ 2.430000] AVM PA for Linux Linux version 3.10.107 (jpluschke@GU_IQ17p2_NL1_vr9) (gcc version 5.4.0 (Buildroot 2016.05-g4d7c863) ) #1 SMP Tue Sep 11 17:57:02 CEST 2018 [ 2.430000] (late init) [ 2.450000] Mirror/redirect action on [ 2.450000] u32 classifier [ 2.450000] Performance counters on [ 2.460000] Actions configured [ 2.460000] ipip: IPv4 over IPv4 tunneling driver [ 2.470000] TCP: cubic registered [ 2.470000] NET: Registered protocol family 10 [ 2.480000] avm_pa: try to activate hw accelaration for pid 4 (ipv6) called from avm_pa_dev_pidhandle_register_with_ingress [ 2.490000] sit: IPv6 over IPv4 tunneling driver [ 2.490000] NET: Registered protocol family 17 [ 2.500000] Bridge broadcast ratelimiter registered [ 2.500000] l2tp_core: L2TP core driver, V2.0 [ 2.500000] l2tp_ip: L2TP IP encapsulation support (L2TPv3) [ 2.510000] l2tp_netlink: L2TP netlink interface [ 2.510000] l2tp_eth: L2TP ethernet pseudowire support (L2TPv3) [ 2.520000] l2tp_ip6: L2TP IP encapsulation support for IPv6 (L2TPv3) [ 2.530000] 8021q: 802.1Q VLAN Support v1.8 [ 2.530000] Key type dns_resolver registered [ 2.540000] <ifx_fix_timing> [ 2.540000] [TFFS3_Init] No storage module registered, trying legacy fallback [ 2.550000] [TFFS3_LGCY_Setup] using mtd7(tffs (1)), mtd8(tffs (2)) [ 2.550000] [TFFS3_LGCY_Setup] mtd "tffs (1)": segment value 132 [ 2.560000] [TFFS3_LGCY_Setup] mtd "tffs (2)": segment value 133 [ 2.570000] [TFFS3_LGCY_Setup] Using segment 133 (avail: 132 + 133) [ 2.570000] [TFFS3_LGCY_Setup] mtd8 size=0x60000 [ 2.580000] TFFS: tiny flash file system driver. GPL (c) AVM Berlin (Version 3.0) [ 2.580000] Adam2 environment variables API installed. [ 2.590000] {avmnet_cfg_netinit} [ 2.600000] [avmnet] No config found for HWRev 185, HWSubRev 6, Profile-ID 0, trying base config for HWSubRev [ 2.610000] [avmnet] No config found for HWRev 185, HWSubRev 6, trying base config for HWRev [ 2.610000] [avmnet] [avmnet_swi_7port_init] Init on module swi_vr9 called. [ 2.970000] [ppe_eth_init] init_hw() [ 2.980000] [init_hw] ppe_hw_init=0xff successful [ 2.980000] [ppe_eth_init] ifx_proc_file_create() [ 2.990000] [ppe_eth_init] dma_setup_init() [ 2.990000] [avmnet] [avmnet_swi_7port_disable_learning] Configuring CPU-port to receive all unknown unicast frames 0x48 [ 3.000000] [avmnet] [avmnet_swi_7port_disable_learning] Configuring CPU-port to receive all unknown multicast frames 0x48 [ 6.450000] avm_pa: try to activate hw accelaration for pid 1 (ipv4) called from avm_pa_register_hardware_pa [ 6.460000] drivers/net/ethernet/avm/avm_cpmac/switch/ifx/common/swi_ifx_common.c:649:ifx_ppa_alloc_virtual_tx_device: alloc virtual tx for pid 1 FAILED [ 6.470000] avm_pa: can't activate tx channel, pid 1 (ipv4) [ 6.480000] avm_pa: try to activate hw accelaration for pid 4 (ipv6) called from avm_pa_register_hardware_pa [ 6.480000] drivers/net/ethernet/avm/avm_cpmac/switch/ifx/common/swi_ifx_common.c:649:ifx_ppa_alloc_virtual_tx_device: alloc virtual tx for pid 4 FAILED [ 6.500000] avm_pa: can't activate tx channel, pid 4 (ipv6) [ 6.500000] [set_pce_critical_mac] setting critical mac rule for ba:db:ad:c0:ff:ee, sw-m-port=5 [ 6.510000] [avmnet_set_macaddr] Setup Mac Addr for Device(eth0): 38:10:d5:xx:xx:xc [ 6.520000] [avmnet_set_macaddr] Setup Mac Addr for Device(eth1): 38:10:d5:xx:xx:xc [ 6.530000] [avmnet_set_macaddr] Setup Mac Addr for Device(eth2): 38:10:d5:xx:xx:xc [ 6.540000] [avmnet_set_macaddr] Setup Mac Addr for Device(eth3): 38:10:d5:xx:xx:xc [ 6.550000] [avmnet_set_macaddr] Setup Mac Addr for Device(wasp): 00:de:ad:be:ef:ca [ 6.560000] [avmnet_create_netdevice] setup offload_cpu_link on device wasp [ 6.610000] SQUASHFS error: Can't find a SQUASHFS superblock on mtdblock1 [ 6.620000] [ntfs_boot_sector_is_ntfs] <ERROR> NTFS signature is missing. [ 6.630000] yaffs: dev is 32505857 name is "mtdblock1" ro [ 6.630000] yaffs: passed flags "" [ 6.670000] VFS: Mounted root (yaffs filesystem) readonly on device 31:1. [ 6.670000] devtmpfs: mounted [ 6.680000] Freeing unused kernel memory: 288K (808b8000 - 80900000) [ 7.680000] TFFS Name Table N [ 7.830000] yaffs: dev is 32505860 name is "mtdblock4" rw [ 7.840000] yaffs: passed flags "" [ 10.500000] led_modul_Fritz_Box_HW185: module license ' [ 10.500000] (C) Copyright 2012 by AVM [ 10.500000] ' taints kernel. [ 10.510000] Disabling lock debugging due to kernel taint [ 10.520000] [module-alloc-by-name] give 0x32000 bytes at 0x81204000 to module 'led_modul_Fritz_Box_HW185' (0x6da000 total bytes left) [ 10.550000] [LED] use GPIO 45 for 'gpio_avm_led_power' [ 10.550000] [LED] use GPIO 47 for 'gpio_avm_led_internet' [ 10.560000] [LED] use GPIO 36 for 'gpio_avm_led_festnetz' [ 10.560000] [LED] use GPIO 35 for 'gpio_avm_led_wlan' [ 10.570000] [LED] use GPIO 33 for 'gpio_avm_led_info' [ 10.570000] [LED] use GPIO 46 for 'gpio_avm_led_info_red' [ 10.580000] [BUTTON] use GPIO 29 for 'gpio_avm_button_wlan' [ 10.580000] [BUTTON] use GPIO 1 for 'gpio_avm_button_dect' [ 10.590000] [avm_connect][state_machine_init] starting event worker thread [ 10.610000] AVM_WATCHDOG: System Init Ueberwachung 240 Sekunden [ 11.870000] [module-alloc-by-name] give 0x2000 bytes at 0x81236000 to module 'rtc_avm' (0x6d8000 total bytes left) [ 11.890000] rtc-avm rtc-avm.0: rtc core: registered avm as rtc0 [ 11.890000] [avm-rtc]: avm_rtc_probe: register: ret=0x8f732c00 [ 11.900000] [avm-rtc]: avm_rtc_probe: success [ 12.150000] [ 12.150000] [avm_debug] redirecting kernel-messages (/dev/debug)


Flash Layout

Note: Somewhere between Fritz-OS version 6 and version 7 the reserved and regular partitions have been swapped!

Mem- Type       MTD     Start           End             Size            Name                    FS
-----------     ----    ----------      ----------      ----------      -------------------     ---------------
nand0           0       0x0000000       0x00400000      0x00400000      kernel
nand0           1       0x0400000       0x03400000      0x03000000      filesystem              squasfs / yaffs2
nand0           2       0x3400000       0x03800000      0x00400000      reserved-kernel
nand0           3       0x3800000       0x06800000      0x03000000      reserved-filesystem
nand0           4       0x6800000       0x06a00000      0x00200000      config                  yaffs2
nand0           5       0x6a00000       0x20000000      0x19600000      nand-filesystem         yaffs2
spi0            6       0x000000        0x040000        0x40000         urlader
spi0            7       0x040000        0x0a0000        0x60000         tffs (1)                tffs3
spi0            8       0x0a0000        0x100000        0x60000         tffs (2)                tffs3

ROM VER: 1.1.4 CFG 05 <E7>$^@^ADC! <A4><A5><84><84>DC[/] ^M(AVM) EVA Revision: 1.1964 Version: 2964 ^M(C) Copyright 2005 AVM Date: Nov 27 2013 Time: 14:33:10 (0) 3 0x0-0x740D [FLASH:] MACRONIX Uniform-Flash 1MB 256 Bytes WriteBuffer [FLASH:](Eraseregion [0] 16 sectors a 64kB) [NAND:] 512MB MICRON 2048 Pagesize 128k Blocksize 4096 Blocks 8Bit 1 CS HW [SYSTEM:] VR9 on 500MHz/250MHz/250MHz .Atheros 8030/35 detected Eva_AVM >##....................................................... Lantiq xDSL CPE VR9 phym = 10000000, mem = 10000000, max_pfn = 00010000 Reserving memory for CP1 @0xb0000000, size 0x00000000 plat_device_tree_setup: AVM hardware subrevision 6 plat_device_tree_setup: using Fallback device-tree of AVM hardware subrevision 0 DT: d0 0d fe ed 00 00 14 36 [ 0.000000] Linux version 3.10.73 (jpluschke@Version_42822_C16_7490avme) (gcc version 4.8.3 (Buildroot 2014.08) ) #1 SMP Tue Mar 21 18:20:42 CET 2017 [ 0.000000] [env_init] 0x81018160[0] [ 0.000000] [env_init] 0x810181a0[1] [ 0.000000] [env_init] 0x810182a0[2] [ 0.000000] [env_init] switch to ram location [ 0.000000] [init_avm_kernel_config] AVM Kernel Config (ptr 80847000) [ 0.000000] [init_avm_kernel_config] AVM Kernel Config: module memory entry [ 0.000000] [init_avm_kernel_config] AVM Kernel Config: version info entry [ 0.000000] [init_avm_kernel_config] AVM Kernel Config: device-tree for subrev 0 found [ 0.000000] bootconsole [early0] enabled [ 0.000000] CPU0 revision is: 00019556 (MIPS 34Kc) [ 0.000000] Determined physical RAM map: [ 0.000000] memory: 10000000 @ 00000000 (usable) [ 0.000000] Initrd not found or empty - disabling initrd [ 0.000000] [module-alloc] use 0xb12000 bytes at 0x81205000 [ 0.000000] [0]lsmtc_smp_setup tcstatus=18102400 [ 0.000000] PERCPU: Embedded 7 pages/cpu @81d1b000 s7072 r8192 d13408 u32768 [ 0.000000] Kernel command line: console=ttyS0,115200n8r nor_size=0MB sflash_size=1024KB nand_size=512MB ethaddr=38:10:D5:xx:xx:xx [ 0.000000] [NAND] nand_size = 0x20000000 [ 0.000000] PID hash table entries: 1024 (order: 0, 4096 bytes) [ 0.000000] Dentry cache hash table entries: 32768 (order: 5, 131072 bytes) [ 0.000000] Inode-cache hash table entries: 16384 (order: 4, 65536 bytes) [ 0.000000] Writing ErrCtl register=0006db70 [ 0.000000] Readback ErrCtl register=0006db70 [ 0.000000] Memory: 239068k/262144k available (5583k kernel code, 23076k reserved, 2948k data, 292k init, 0k highmem) [ 0.000000] Hierarchical RCU implementation. [ 0.000000] NR_IRQS:181 [ 0.000000] SRSConf0 0x3feffbfe: SRS1: 0xffffffff, SRS2 0xffffffff, SRS3 0xffffffff [ 0.000000] Lantiq ICU driver, version 3.0.1, (c) 2001-2011 Lantiq Deutschland GmbH [ 0.000000] Console: colour dummy device 80x25 [ 0.000000] console [ttyS0] enabled, bootconsole disabled [ 0.000000] console [ttyS0] enabled, bootconsole disabled [ 0.020000] Calibrating delay loop... 331.77 BogoMIPS (lpj=1658880) [ 0.080000] pid_max: default: 32768 minimum: 301 [ 0.080000] Security Framework initialized [ 0.080000] Mount-cache hash table entries: 512 [ 0.090000] CPU1 revision is: 00019556 (MIPS 34Kc) [ 0.170000] Brought up 2 CPUs [ 0.170000] [yield_context_init] cpu=1 tc=2 mask=301 [ 0.180000] [yield_context_init] cpu=0 tc=3 mask=2410 [ 0.180000] devtmpfs: initialized [ 0.200000] pinctrl core: initialized pinctrl subsystem [ 0.200000] Creating Config Table [ 0.200000] [avm_generate_hw_config_table_from_device_tree] gpio_cnt: 46 [ 0.210000] NET: Registered protocol family 16 [ 0.220000] avm_check_cpu_features: mips-options: 0x006d638b icache.flags 0x00000000 dcache.flags 0x00000004 isa_level 0x00000063 ases 00000031 [ 0.230000] [TFFS3_Early_Init] called [ 0.240000] avm_alloc_page_extension node_extension_table[0] entries=65536 (size=262144) alloced [ 0.240000] Reboot Status is: Power-On [ 0.250000] [avmnet] [avmnet_cfg_init] Driver version: 6.247 - Revision 1496:3622 - Di 21. Mär 18:19:50 CET 2017 [ 0.870000] Lantiq PCIe Root Complex driver, version 2.0.0, (c) 2001-2011 Lantiq Deutschland GmbH [ 0.920000] bio: create slab <bio-0> at 0 [ 0.930000] PCI host bridge to bus 0000:00 [ 0.930000] pci_bus 0000:00: root bus resource [mem 0x1c000000-0x1cffffff] [ 0.940000] pci_bus 0000:00: root bus resource [io 0x1d800000-0x1d8fffff] [ 0.940000] pci_bus 0000:00: No busn resource found for root bus, will use [bus 00-ff] [ 0.950000] ifx_pcie_rc_class_early_fixup port 0: fixed pcie host bridge to pci-pci bridge [ 0.960000] pci 0000:00:00.0: BAR 8: assigned [mem 0x1c000000-0x1c0fffff] [ 0.970000] pci 0000:01:00.0: BAR 0: assigned [mem 0x1c000000-0x1c001fff 64bit] [ 0.970000] pci 0000:00:00.0: PCI bridge to [bus 01] [ 0.980000] pci 0000:00:00.0: bridge window [mem 0x1c000000-0x1c0fffff] [ 0.990000] NET: Registered protocol family 8 [ 0.990000] NET: Registered protocol family 20 [ 1.000000] Switching to clocksource MIPS [ 1.050000] NET: Registered protocol family 2 [ 1.050000] TCP established hash table entries: 2048 (order: 2, 16384 bytes) [ 1.060000] TCP bind hash table entries: 2048 (order: 2, 16384 bytes) [ 1.060000] TCP: Hash tables configured (established 2048 bind 2048) [ 1.070000] TCP: reno registered [ 1.070000] UDP hash table entries: 256 (order: 1, 8192 bytes) [ 1.080000] UDP-Lite hash table entries: 256 (order: 1, 8192 bytes) [ 1.090000] avm_pa: try to activate hw accelaration for pid 1 (ipv4) [ 1.090000] NET: Registered protocol family 1 [ 1.100000] pci 0000:01:00.0: xHCI HW not ready after 5 sec (HC bug?) status = 0x801 [ 1.110000] Lantiq CGU driver, version 1.1.32, (c) 2001-2011 Lantiq Deutschland GmbH [ 1.120000] IFX DMA driver, version ifxmips_dma_core.c:v1.0.17, (c) 2009 Infineon Technologies AG [ 1.120000] skb_shared_size:184 [ 1.130000] squashfs: version 4.0 (2009/01/31) Phillip Lougher [ 1.140000] fuse init (API version 7.22) [ 1.140000] msgmni has been set to 466 [ 1.150000] io scheduler noop registered (default) [ 1.490000] ttyS0 at MMIO 0x1e100c00 (irq = 107) is a PORT_IFX_ASC [ 1.500000] ifx_usif_uart_init: uart_register_driver failed [ 1.510000] avm_net_trace: Up and running. [ 1.510000] [loadcontrol] set auto - scale=1 [ 1.520000] Lantiq Thermal Sensor driver, version 1.0.3, (c) 2001-2011 Lantiq Deutschland GmbH [ 1.520000] ifx_pmu_init: Major 244 [ 1.530000] Lantiq PMU driver, version 1.2.6, (c) 2001-2011 Lantiq Deutschland GmbH [ 1.540000] Lantiq GPIO driver, version 1.3.2, (c) 2001-2011 Lantiq Deutschland GmbH [ 1.540000] Infineon Technologies RCU driver version 1.0.7 [ 1.560000] loop: module loaded [ 1.570000] nbd: registered device at major 43 [ 1.600000] [HSNAND] Hardware-ECC activated [ 1.600000] ONFI param page 0 valid [ 1.600000] ONFI flash detected [ 1.610000] NAND device: Manufacturer ID: 0x2c, Chip ID: 0xdc (Micron MT29F4G08ABADAWP), 512MiB, page size: 2048, OOB size: 64 [ 1.620000] Scanning device for bad blocks [ 2.040000] Creating 6 MTD partitions on "ifx_hsnand": [ 2.040000] 0x000000000000-0x000000400000 : "reserved-kernel" [ 2.050000] 0x000000400000-0x000003400000 : "reserved-filesystem" [ 2.060000] 0x000003400000-0x000003800000 : "kernel" [ 2.060000] 0x000003800000-0x000006800000 : "filesystem" [ 2.070000] 0x000006800000-0x000006a00000 : "config" [ 2.080000] 0x000006a00000-0x000020000000 : "nand-filesystem" [ 2.090000] [TFFS3_Register_Panic_CB] registering panic callback for mtd ifx_hsnand [ 2.090000] [TFFS3_Register_Panic_CB] registering panic callback for mtd ifx_sflash [ 2.100000] Creating 3 MTD partitions on "ifx_sflash": [ 2.110000] 0x000000000000-0x000000040000 : "urlader" [ 2.110000] 0x000000040000-0x0000000a0000 : "tffs (1)" [ 2.120000] 0x0000000a0000-0x000000100000 : "tffs (2)" [ 2.130000] Lantiq SPI flash driver, version 2.0.2, (c) 2001-2011 Lantiq Deutschland GmbH [ 2.130000] tun: Universal TUN/TAP device driver, 1.6 [ 2.140000] tun: (C) 1999-2004 Max Krasnyansky <maxk@qualcomm.com> [ 2.150000] SWAPI: Registered character device [switch_api] with major no [81] [ 2.150000] i2c /dev entries driver [ 2.160000] cpuidle: using governor ladder [ 2.160000] cpuidle: using governor menu [ 2.160000] AVM PA for Linux 3.10.73 [ 2.170000] AVM PA skb pktinfo at offset 136 size 208 [ 2.170000] [loadcontrol]module avm_pa registered [ 2.180000] u32 classifier [ 2.180000] Performance counters on [ 2.180000] Actions configured [ 2.190000] ipip: IPv4 over IPv4 tunneling driver [ 2.190000] TCP: cubic registered [ 2.200000] NET: Registered protocol family 10 [ 2.200000] avm_pa: try to activate hw accelaration for pid 2 (ipv6) [ 2.210000] sit: IPv6 over IPv4 tunneling driver [ 2.210000] NET: Registered protocol family 17 [ 2.220000] Bridge broadcast ratelimiter registered [ 2.220000] l2tp_core: L2TP core driver, V2.0 [ 2.230000] l2tp_ip: L2TP IP encapsulation support (L2TPv3) [ 2.230000] l2tp_netlink: L2TP netlink interface [ 2.240000] l2tp_eth: L2TP ethernet pseudowire support (L2TPv3) [ 2.240000] l2tp_ip6: L2TP IP encapsulation support for IPv6 (L2TPv3) [ 2.250000] 8021q: 802.1Q VLAN Support v1.8 [ 2.250000] Key type dns_resolver registered [ 2.260000] <ifx_fix_timing> [ 2.260000] [TFFS3_Init] No storage module registered, trying legacy fallback [ 2.270000] [TFFS3_Register_LGCY] Called [ 2.270000] [TFFS3_LGCY_Configure] Called [ 2.280000] [TFFS3_LGCY_Setup] using mtd7(tffs (1)), mtd8(tffs (2)) [ 2.280000] [TFFS3_LGCY_Setup] mtd "tffs (1)": segment value 130 [ 2.290000] [TFFS3_LGCY_Setup] mtd "tffs (2)": segment value 129 [ 2.290000] [TFFS3_LGCY_Setup] Using segment 130 (avail: 130 + 129) [ 2.300000] [TFFS3_LGCY_Setup] mtd7 size=0x60000 [ 2.310000] TFFS: tiny flash file system driver. GPL (c) AVM Berlin (Version 3.0) [ 2.310000] [rescan_segment] Called with mode=2 [ 2.310000] TFFS: Clearing index for update [ 2.320000] Adam2 environment variables API installed. [ 2.330000] [simple-profiling]:2 performance counters implemented, NEW_34K [ 2.330000] [simple-profiling]Enable Performance Counter 0 for Data cache load/stores (User Supervisor Kernel Exception TC-ID=0) all cores tc: 0 [ 2.350000] [simple-profiling]Enable Performance Counter 1 for Data cache load/store misses (User Supervisor Kernel Exception TC-ID=0) all cores tc: 0 [ 2.360000] [simple-profiling]Enable Performance Counter 0 for Data cache load/stores (User Supervisor Kernel Exception TC-ID=1) all cores tc: 1 [ 2.370000] [simple-profiling]Enable Performance Counter 1 for Data cache load/store misses (User Supervisor Kernel Exception TC-ID=1) all cores tc: 1 [ 2.390000] [simple-profiling]Enable Performance Counter 0 for Main pipeline stalls (P) (User Supervisor Kernel Exception TC-ID=2) all cores tc: 2 [ 2.400000] [simple-profiling]Enable Performance Counter 1 for Cycles (P) (User Supervisor Kernel Exception TC-ID=2) all cores tc: 2 [ 2.410000] [simple-profiling]Enable Performance Counter 0 for Data cache load/stores (User Supervisor Kernel Exception TC-ID=3) all cores tc: 3 [ 2.420000] [simple-profiling]Enable Performance Counter 1 for Data cache load/store misses (User Supervisor Kernel Exception TC-ID=3) all cores tc: 3 [ 2.440000] [simple-profiling]all cores:performance-mode (round-robin): cpus on [ 2.450000] {avmnet_cfg_netinit} [ 2.450000] [avmnet] No config found for HWRev 185, HWSubRev 6, Profile-ID 0, trying base config for HWSubRev [ 2.460000] [avmnet] No config found for HWRev 185, HWSubRev 6, trying base config for HWRev [ 2.470000] [avmnet] [avmnet_swi_7port_init] Init on module swi_vr9 called. [ 2.790000] [ppe_eth_init] init_hw() [ 2.790000] [init_hw] ppe_hw_init=0xff successful [ 2.800000] [ppe_eth_init] ifx_proc_file_create() [ 2.800000] [ppe_eth_init] dma_setup_init() [ 2.810000] [avmnet] [avmnet_swi_7port_disable_learning] Configuring CPU-port to receive all unknown unicast frames 0x48 [ 2.820000] [avmnet] [avmnet_swi_7port_disable_learning] Configuring CPU-port to receive all unknown multicast frames 0x48 [ 6.210000] avm_pa: try to activate hw accelaration for pid 1 (ipv4) [ 6.210000] avm_pa: tx channel activated, pid 1 (ipv4) [ 6.220000] avm_pa: try to activate hw accelaration for pid 2 (ipv6) [ 6.220000] avm_pa: tx channel activated, pid 2 (ipv6) [ 6.230000] [avmnet_set_macaddr] Setup Mac Addr for Device(eth0): 38:10:d5:xx:xx:xc [ 6.240000] avmnet: avm_pa: register pid eth0 [ 6.240000] [avmnet_set_macaddr] Setup Mac Addr for Device(eth1): 38:10:d5:xx:xx:xd [ 6.250000] avmnet: avm_pa: register pid eth1 [ 6.250000] [avmnet_set_macaddr] Setup Mac Addr for Device(eth2): 38:10:d5:xx:xx:x1 [ 6.260000] avmnet: avm_pa: register pid eth2 [ 6.270000] [avmnet_set_macaddr] Setup Mac Addr for Device(eth3): 38:10:d5:xx:xx:x2 [ 6.280000] avmnet: avm_pa: register pid eth3 [ 6.280000] [avmnet_set_macaddr] Setup Mac Addr for Device(wasp): 00:de:ad:be:ef:ca [ 6.290000] [avmnet_create_netdevice] setup offload_cpu_link on device wasp [ 6.290000] avmnet: avm_pa: register pid wasp [ 6.340000] SQUASHFS error: Can't find a SQUASHFS superblock on mtdblock3 [ 6.350000] yaffs: dev is 32505859 name is "mtdblock3" ro [ 6.350000] yaffs: passed flags "" [ 6.380000] VFS: Mounted root (yaffs filesystem) readonly on device 31:3. [ 6.390000] devtmpfs: mounted [ 6.400000] Freeing unused kernel memory: 292K (80857000 - 808a0000) [ 6.430000] [ifx_hsnand_command] read block is critical (column: 0x0 page: 0x9b0e) [ 6.440000] {micron_read_hwecc} page 0x9b0e Sec 0 1 Berr 0 OOB 0 ECC [ 6.790000] [ifx_hsnand_command] read block is critical (column: 0x0 page: 0x724a) [ 6.790000] {micron_read_hwecc} page 0x724a Sec 0 1 Berr 0 OOB 0 ECC [ 6.860000] [ifx_hsnand_command] read block is critical (column: 0x0 page: 0x8456) [ 6.870000] {micron_read_hwecc} page 0x8456 Sec 3 1 Berr 0 OOB 0 ECC [ 6.990000] [ifx_hsnand_command] read block is critical (column: 0x0 page: 0x8485) [ 6.990000] {micron_read_hwecc} page 0x8485 Sec 0 1 Berr 0 OOB 0 ECC [ 7.530000] TFFS Name Table L [ 7.640000] yaffs: dev is 32505860 name is "mtdblock4" rw [ 7.650000] yaffs: passed flags "" [ 9.120000] [ifx_hsnand_command] read block is critical (column: 0x0 page: 0x7de3) [ 9.120000] {micron_read_hwecc} page 0x7de3 Sec 2 1 Berr 0 OOB 0 ECC [ 10.190000] led_modul_Fritz_Box_HW185: module license ' [ 10.190000] (C) Copyright 2012 by AVM [ 10.190000] ' taints kernel. [ 10.200000] Disabling lock debugging due to kernel taint [ 10.200000] [module-alloc-by-name] give 0x1d000 bytes at 0x81205000 to module 'led_modul_Fritz_Box_HW185' (0xaf5000 bytes left) [ 10.230000] [LED] use GPIO 45 for 'gpio_avm_led_power' [ 10.240000] [LED] use GPIO 47 for 'gpio_avm_led_internet' [ 10.240000] [LED] use GPIO 36 for 'gpio_avm_led_festnetz' [ 10.250000] [LED] use GPIO 35 for 'gpio_avm_led_wlan' [ 10.250000] [LED] use GPIO 33 for 'gpio_avm_led_info' [ 10.260000] [LED] use GPIO 46 for 'gpio_avm_led_info_red' [ 10.260000] [BUTTON] use GPIO 29 for 'gpio_avm_button_wlan' [ 10.270000] [BUTTON] use GPIO 1 for 'gpio_avm_button_dect' [ 10.290000] AVM_WATCHDOG: System Init UEberwachung 240 Sekunden [ 10.840000] [module-alloc-by-name] give 0x3000 bytes at 0x81222000 to module 'rtc_avm' (0xaf2000 bytes left) [ 10.850000] rtc-avm rtc-avm.0: rtc core: registered avm as rtc0 [ 10.860000] [avm-rtc]: avm_rtc_probe: register: ret=0x8f686000 [ 10.860000] [avm-rtc]: avm_rtc_probe: success [ 11.070000] [ 11.070000] [avm_debug] redirecting kernel-messages (/dev/debug)


Flash Layout

Note: Somewhere between Fritz-OS version 6 and version 7 the reserved and regular partitions have been swapped!

Mem- Type       MTD     Start           End             Size            Name                    FS
-----------     ----    ----------      ----------      ----------      -------------------     ---------------
nand0           0       0x0000000       0x00400000      0x00400000      reserved-kernel
nand0           1       0x0400000       0x03400000      0x03000000      reserved-filesystem
nand0           2       0x3400000       0x03800000      0x00400000      kernel
nand0           3       0x3800000       0x06800000      0x03000000      filesystem              squasfs / yaffs
nand0           4       0x6800000       0x06a00000      0x00200000      config                  yaffs2
nand0           5       0x6a00000       0x20000000      0x19600000      nand-filesystem         yaffs2
spi0            6       0x000000        0x040000        0x40000         urlader
spi0            7       0x040000        0x0a0000        0x60000         tffs (1)                tffs
spi0            8       0x0a0000        0x100000        0x60000         tffs (2)                tffs

[ 0.000000] Linux version 5.10.64 (linuxinside@pluto) (mips-openwrt-linux-musl-gcc (OpenWrt GCC 10.3.0 r17573-14e2b33771) 10.3.0, GNU ld (GNU Binutils) 2.36.1) #0 SMP Tue Sep 14 14:14:05 2021 [ 0.000000] SoC: xRX200 rev 1.2 [ 0.000000] printk: bootconsole [early0] enabled [ 0.000000] CPU0 revision is: 00019556 (MIPS 34Kc) [ 0.000000] MIPS: machine is AVM FRITZ!Box 7490 (Micron NAND) [ 0.000000] Initrd not found or empty - disabling initrd [ 0.000000] Detected 1 available secondary CPU(s) [ 0.000000] Primary instruction cache 32kB, VIPT, 4-way, linesize 32 bytes. [ 0.000000] Primary data cache 32kB, 4-way, VIPT, cache aliases, linesize 32 bytes [ 0.000000] Zone ranges: [ 0.000000] Normal [mem 0x0000000000000000-0x000000000fffffff] [ 0.000000] Movable zone start for each node [ 0.000000] Early memory node ranges [ 0.000000] node 0: [mem 0x0000000000000000-0x000000001fffffff] [ 0.000000] Initmem setup node 0 [mem 0x0000000000000000-0x000000001fffffff] [ 0.000000] On node 0 totalpages: 65536 [ 0.000000] Normal zone: 576 pages used for memmap [ 0.000000] Normal zone: 0 pages reserved [ 0.000000] Normal zone: 65536 pages, LIFO batch:15 [ 0.000000] percpu: Embedded 14 pages/cpu s26448 r8192 d22704 u57344 [ 0.000000] pcpu-alloc: s26448 r8192 d22704 u57344 alloc=14*4096 [ 0.000000] pcpu-alloc: [0] 0 [0] 1 [ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 64960 [ 0.000000] Kernel command line: console=ttyLTQ0,115200 [ 0.000000] Dentry cache hash table entries: 32768 (order: 5, 131072 bytes, linear) [ 0.000000] Inode-cache hash table entries: 16384 (order: 4, 65536 bytes, linear) [ 0.000000] Writing ErrCtl register=000203cc [ 0.000000] Readback ErrCtl register=000203cc [ 0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off [ 0.000000] Memory: 249076K/262144K available (6655K kernel code, 623K rwdata, 1652K rodata, 1228K init, 211K bss, 13068K reserved, 0K cma-reserved) [ 0.000000] SLUB: HWalign=32, Order=0-3, MinObjects=0, CPUs=2, Nodes=1 [ 0.000000] rcu: Hierarchical RCU implementation. [ 0.000000] Tracing variant of Tasks RCU enabled. [ 0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 10 jiffies. [ 0.000000] NR_IRQS: 256 [ 0.000000] random: get_random_bytes called from start_kernel+0x3d4/0x5ec with crng_init=0 [ 0.000000] CPU Clock: 500MHz [ 0.000000] clocksource: MIPS: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 7645041786 ns [ 0.000012] sched_clock: 32 bits at 250MHz, resolution 4ns, wraps every 8589934590ns [ 0.007915] Calibrating delay loop... 331.77 BogoMIPS (lpj=1658880) [ 0.074007] pid_max: default: 32768 minimum: 301 [ 0.078941] Mount-cache hash table entries: 1024 (order: 0, 4096 bytes, linear) [ 0.086134] Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes, linear) [ 0.097849] rcu: Hierarchical SRCU implementation. [ 0.103012] dyndbg: Ignore empty _ddebug table in a CONFIG_DYNAMIC_DEBUG_CORE build [ 0.111043] smp: Bringing up secondary CPUs ... [ 0.116694] Primary instruction cache 32kB, VIPT, 4-way, linesize 32 bytes. [ 0.116710] Primary data cache 32kB, 4-way, VIPT, cache aliases, linesize 32 bytes [ 0.116809] CPU1 revision is: 00019556 (MIPS 34Kc) [ 0.170839] Synchronize counters for CPU 1: done. [ 0.195166] smp: Brought up 1 node, 2 CPUs [ 0.206114] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns [ 0.215889] futex hash table entries: 512 (order: 2, 16384 bytes, linear) [ 0.222834] pinctrl core: initialized pinctrl subsystem [ 0.229333] NET: Registered protocol family 16 [ 0.272282] dcdc-xrx200 1f106a00.dcdc: Core Voltage : 1016 mV [ 0.279674] gpio-476 (usb-vbus): hogged as output/high [ 0.284775] gpio-467 (wasp-wakeup): hogged as output/high [ 0.290446] gpio-484 (pcie-rst-dev): hogged as output/low [ 0.296238] pinctrl-xway 1e100b10.pinmux: Init done [ 0.301474] dma-xway 1e104100.dma: Init done - hw rev: 7, ports: 7, channels: 28 [ 0.309826] PCI host bridge /fpi@10000000/pci@e105400 ranges: [ 0.315607] MEM 0x0000000018000000..0x0000000019ffffff [ 0.320810] IO 0x000000001ae00000..0x000000001affffff [ 0.391790] random: fast init done [ 0.401832] usbcore: registered new interface driver usbfs [ 0.407707] usbcore: registered new interface driver hub [ 0.413128] usbcore: registered new device driver usb [ 0.421350] PCI host bridge to bus 0000:00 [ 0.425377] pci_bus 0000:00: root bus resource [mem 0x18000000-0x19ffffff] [ 0.432347] pci_bus 0000:00: root bus resource [io 0x1ae00000-0x1affffff] [ 0.439257] pci_bus 0000:00: root bus resource [??? 0x00000000 flags 0x0] [ 0.446170] pci_bus 0000:00: No busn resource found for root bus, will use [bus 00-ff] [ 0.459317] pci_bus 0000:00: busn_res: [bus 00-ff] end is updated to 00 [ 0.467041] clocksource: Switched to clocksource MIPS [ 0.475211] NET: Registered protocol family 2 [ 0.479989] IP idents hash table entries: 4096 (order: 3, 32768 bytes, linear) [ 0.489059] tcp_listen_portaddr_hash hash table entries: 512 (order: 0, 6144 bytes, linear) [ 0.497497] TCP established hash table entries: 2048 (order: 1, 8192 bytes, linear) [ 0.505146] TCP bind hash table entries: 2048 (order: 2, 16384 bytes, linear) [ 0.512377] TCP: Hash tables configured (established 2048 bind 2048) [ 0.519055] UDP hash table entries: 256 (order: 1, 8192 bytes, linear) [ 0.525546] UDP-Lite hash table entries: 256 (order: 1, 8192 bytes, linear) [ 0.533205] NET: Registered protocol family 1 [ 0.537597] PCI: CLS 0 bytes, default 32 [ 0.542801] gptu: totally 6 16-bit timers/counters [ 0.547880] gptu: misc_register on minor 63 [ 0.552098] gptu: succeeded to request irq 126 [ 0.556513] gptu: succeeded to request irq 127 [ 0.561099] gptu: succeeded to request irq 128 [ 0.565519] gptu: succeeded to request irq 129 [ 0.570129] gptu: succeeded to request irq 130 [ 0.574533] gptu: succeeded to request irq 131 [ 0.579297] No VPEs reserved for AP/SP, not initialize VPE loader [ 0.579297] Pass maxvpes=<n> argument as kernel argument [ 0.590715] No TCs reserved for AP/SP, not initializing RTLX. [ 0.590715] Pass maxtcs=<n> argument as kernel argument [ 0.606048] workingset: timestamp_bits=14 max_order=16 bucket_order=2 [ 0.619859] squashfs: version 4.0 (2009/01/31) Phillip Lougher [ 0.625538] jffs2: version 2.2 (NAND) (SUMMARY) (LZMA) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc. [ 0.640369] gpio-export gpio-export: 1 gpio(s) exported [ 0.648412] 1e100c00.serial: ttyLTQ0 at MMIO 0x1e100c00 (irq = 112, base_baud = 0) is a lantiq,asc [ 0.657409] printk: console [ttyLTQ0] enabled [ 0.666063] printk: bootconsole [early0] disabled [ 0.681086] nand: device found, Manufacturer ID: 0x2c, Chip ID: 0xdc [ 0.686032] nand: Micron MT29F4G08ABADAWP [ 0.690164] nand: 512 MiB, SLC, erase size: 128 KiB, page size: 2048, OOB size: 64 [ 0.697727] Scanning device for bad blocks [ 0.983814] 6 fixed-partitions partitions found on MTD device 14000000.flash [ 0.989488] Creating 6 MTD partitions on "14000000.flash": [ 0.994913] 0x000000000000-0x000000400000 : "reserved-kernel" [ 1.002438] 0x000000400000-0x000003400000 : "reserved-filesystem" [ 1.009755] 0x000003400000-0x000003800000 : "kernel" [ 1.014993] 0x000003800000-0x000006800000 : "filesystem" [ 1.021316] 0x000006800000-0x000006a00000 : "config" [ 1.027112] 0x000006a00000-0x000020000000 : "ubi" [ 1.049383] spi-lantiq-ssc 1e100800.spi: Lantiq SSC SPI controller (Rev 8, TXFS 8, RXFS 8, DMA 1) [ 1.059800] spi-nor spi0.4: mx25l8005 (1024 Kbytes) [ 1.063390] 3 fixed-partitions partitions found on MTD device spi0.4 [ 1.069744] Creating 3 MTD partitions on "spi0.4": [ 1.074390] 0x000000000000-0x000000040000 : "urlader" [ 1.081213] 0x000000040000-0x0000000a0000 : "tffs (1)" [ 1.086459] 0x0000000a0000-0x000000100000 : "tffs (2)" [ 1.098775] libphy: Fixed MDIO Bus: probed [ 1.428321] libphy: lantiq,xrx200-mdio: probed [ 1.445153] gswip 1e108000.switch: dsa switch register failed: -517 [ 1.453622] membase: ae10b100 [ 1.464912] NET: Registered protocol family 10 [ 1.477049] Segment Routing with IPv6 [ 1.479532] NET: Registered protocol family 17 [ 1.484785] 8021q: 802.1Q VLAN Support v1.8 [ 1.494871] pcie-xrx200 1d900000.pcie: failed to get the PCIe PHY [ 1.818344] libphy: lantiq,xrx200-mdio: probed [ 1.917827] gswip 1e108000.switch lan3 (uninitialized): PHY [1e108000.switch-mii:00] driver [Qualcomm Atheros AR8035] (irq=POLL) [ 2.007781] gswip 1e108000.switch lan4 (uninitialized): PHY [1e108000.switch-mii:01] driver [Qualcomm Atheros AR8035] (irq=POLL) [ 2.023066] gswip 1e108000.switch lan2 (uninitialized): PHY [1e108000.switch-mii:11] driver [Intel XWAY PHY11G (xRX v1.2 integrated)] (irq=POLL) [ 2.039864] gswip 1e108000.switch lan1 (uninitialized): PHY [1e108000.switch-mii:13] driver [Intel XWAY PHY11G (xRX v1.2 integrated)] (irq=POLL) [ 2.057119] DSA: tree 0 setup [ 2.058715] gswip 1e108000.switch: probed GSWIP version 21 mod 0 [ 2.065885] pcie-xrx200 1d900000.pcie: switch pcie endianess requested [ 2.206401] PCI host bridge /fpi@10000000/pcie@d900000 ranges: [ 2.211135] PCI host bridge to bus 0000:01 [ 2.214959] pci_bus 0000:01: root bus resource [mem 0x1c000000-0x1cffffff] [ 2.221837] pci_bus 0000:01: root bus resource [io 0x1d800000-0x1d8fffff] [ 2.228706] pci_bus 0000:01: root bus resource [??? 0x00000000 flags 0x0] [ 2.235426] pci_bus 0000:01: No busn resource found for root bus, will use [bus 01-ff] [ 2.243470] ifx_pcie_rc_class_early_fixup: fixed pcie host bridge to pci-pci bridge [ 2.261144] pci 0000:01:00.0: ifx_pcie_rc_class_early_fixup+0x0/0x80 took 17221 usecs [ 2.267597] pci 0000:01:00.0: [1bef:0011] type 01 class 0x060400 [ 2.273668] pci 0000:01:00.0: PME# supported from D0 D3hot [ 2.282507] pci 0000:01:00.0: bridge configuration invalid ([bus 02-00]), reconfiguring [ 2.289505] pci 0000:02:00.0: [1912:0015] type 00 class 0x0c0330 [ 2.295214] pci 0000:02:00.0: reg 0x10: [mem 0x00000000-0x00001fff 64bit] [ 2.302162] pci 0000:02:00.0: PME# supported from D0 D3hot [ 2.307474] pci 0000:02:00.0: 2.000 Gb/s available PCIe bandwidth, limited by 2.5 GT/s PCIe x1 link at 0000:01:00.0 (capable of 4.000 Gb/s with 5.0 GT/s PCIe x1 link) [ 2.325556] pci_bus 0000:02: busn_res: [bus 02-ff] end is updated to 02 [ 2.330821] pci_bus 0000:01: busn_res: [bus 01-ff] end is updated to 02 [ 2.337450] pci 0000:01:00.0: BAR 8: assigned [mem 0x1c000000-0x1c0fffff] [ 2.344145] pci 0000:02:00.0: BAR 0: assigned [mem 0x1c000000-0x1c001fff 64bit] [ 2.351528] pci 0000:01:00.0: PCI bridge to [bus 02] [ 2.356411] pci 0000:01:00.0: bridge window [mem 0x1c000000-0x1c0fffff] [ 2.363414] ifx_pcie_bios_map_irq port 0 dev 0000:01:00.0 slot 0 pin 1 [ 2.369851] ifx_pcie_bios_map_irq dev 0000:01:00.0 irq 144 assigned [ 2.376097] pcieport 0000:01:00.0: enabling device (0000 -> 0002) [ 2.382901] pci 0000:02:00.0: enabling device (0000 -> 0002) [ 2.393160] pci 0000:02:00.0: xHCI HW not ready after 5 sec (HC bug?) status = 0x801 [ 2.399563] pci 0000:02:00.0: quirk_usb_early_handoff+0x0/0x8f0 took 16286 usecs [ 2.408568] UBI: auto-attach mtd5 [ 2.410503] ubi0: attaching mtd5 [ 2.437556] UBI: EOF marker found, PEBs from 55 will be erased [ 2.448348] ubi0: scanning is finished [ 2.481489] ubi0: volume 0 ("rootfs") re-sized from 53 to 3164 LEBs [ 2.488271] ubi0: attached mtd5 (name "ubi", size 406 MiB) [ 2.492308] ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 129024 bytes [ 2.499263] ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 512 [ 2.505883] ubi0: VID header offset: 512 (aligned 512), data offset: 2048 [ 2.512760] ubi0: good PEBs: 3248, bad PEBs: 0, corrupted PEBs: 0 [ 2.518825] ubi0: user volume: 1, internal volumes: 1, max. volumes count: 128 [ 2.525991] ubi0: max/mean erase counter: 2/1, WL threshold: 4096, image sequence number: 8690765 [ 2.534914] ubi0: available PEBs: 0, total reserved PEBs: 3248, PEBs reserved for bad PEB handling: 80 [ 2.544305] ubi0: background thread "ubi_bgt0d" started, PID 474 [ 2.554014] UBIFS (ubi0:0): Mounting in unauthenticated mode [ 2.559339] UBIFS (ubi0:0): background thread "ubifs_bgt0_0" started, PID 476 [ 2.695820] UBIFS (ubi0:0): UBIFS: mounted UBI device 0, volume 0, name "rootfs" [ 2.701904] UBIFS (ubi0:0): LEB size: 129024 bytes (126 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes [ 2.711823] UBIFS (ubi0:0): FS size: 406812672 bytes (387 MiB, 3153 LEBs), journal size 9033728 bytes (8 MiB, 71 LEBs) [ 2.722498] UBIFS (ubi0:0): reserved for root: 0 bytes (0 KiB) [ 2.728454] UBIFS (ubi0:0): media format: w4/r0 (latest is w5/r0), UUID xxx...xxx, small LPT model [ 2.746875] VFS: Mounted root (ubifs filesystem) on device 0:11. [ 2.755355] Freeing unused kernel memory: 1228K [ 2.758620] This architecture does not have kernel memory protection. [ 2.764942] Run /sbin/init as init process [ 2.769139] with arguments: [ 2.769173] /sbin/init [ 2.769187] with environment: [ 2.769203] HOME=/ [ 2.769218] TERM=linux [ 3.143956] init: Console is alive [ 3.149454] init: - watchdog - [ 3.782797] kmodloader: loading kernel modules from /etc/modules-boot.d/* [ 4.473414] SCSI subsystem initialized [ 4.618202] ifx_pcie_bios_map_irq port 0 dev 0000:02:00.0 slot 0 pin 1 [ 4.623444] ifx_pcie_bios_map_irq dev 0000:02:00.0 irq 144 assigned [ 4.647875] got firmware version: 2026. [ 5.277547] xhci_hcd 0000:02:00.0: xHCI Host Controller [ 5.285278] xhci_hcd 0000:02:00.0: new USB bus registered, assigned bus number 1 [ 5.298486] xhci_hcd 0000:02:00.0: hcc params 0x014051cf hci version 0x100 quirks 0x0000001100000090 [ 5.308153] usb usb1: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 5.10 [ 5.315052] usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1 [ 5.322374] usb usb1: Product: xHCI Host Controller [ 5.327244] usb usb1: Manufacturer: Linux 5.10.64 xhci-hcd [ 5.332590] usb usb1: SerialNumber: 0000:02:00.0 [ 5.339140] hub 1-0:1.0: USB hub found [ 5.341972] hub 1-0:1.0: 2 ports detected [ 5.348240] xhci_hcd 0000:02:00.0: xHCI Host Controller [ 5.352198] xhci_hcd 0000:02:00.0: new USB bus registered, assigned bus number 2 [ 5.359669] xhci_hcd 0000:02:00.0: Host supports USB 3.0 SuperSpeed [ 5.368107] usb usb2: We don't know the algorithms for LPM for this host, disabling LPM. [ 5.375587] usb usb2: New USB device found, idVendor=1d6b, idProduct=0003, bcdDevice= 5.10 [ 5.383242] usb usb2: New USB device strings: Mfr=3, Product=2, SerialNumber=1 [ 5.390493] usb usb2: Product: xHCI Host Controller [ 5.395182] usb usb2: Manufacturer: Linux 5.10.64 xhci-hcd [ 5.400797] usb usb2: SerialNumber: 0000:02:00.0 [ 5.407602] hub 2-0:1.0: USB hub found [ 5.410494] hub 2-0:1.0: 2 ports detected [ 5.459017] usbcore: registered new interface driver usb-storage [ 5.465465] kmodloader: done loading kernel modules from /etc/modules-boot.d/* [ 5.480669] init: - preinit - [ 6.522451] random: jshn: uninitialized urandom read (4 bytes read) [ 6.639373] random: jshn: uninitialized urandom read (4 bytes read) [ 7.083189] random: crng init done [ 8.565110] gswip 1e108000.switch lan1: configuring for phy/internal link mode [ 8.571363] 8021q: adding VLAN 0 to HW filter on device lan1 [ 11.707426] gswip 1e108000.switch lan1: Link is Up - 1Gbps/Full - flow control rx/tx [ 11.713791] IPv6: ADDRCONF(NETDEV_CHANGE): lan1: link becomes ready [ 12.797365] mount_root: mounting /dev/root [ 12.810243] urandom-seed: Seed file not found (/etc/urandom.seed) [ 12.878141] gswip 1e108000.switch lan1: Link is Down [ 12.903995] procd: - early - [ 12.907112] procd: - watchdog - [ 13.514580] procd: - watchdog - [ 13.520085] procd: - ubus - [ 13.580794] procd: - init - [ 14.569635] kmodloader: loading kernel modules from /etc/modules.d/* [ 14.595863] IFXOS, Version 1.5.19 (c) Copyright 2009, Lantiq Deutschland GmbH [ 14.762342] Lantiq (VRX) DSL CPE MEI driver, version 1.5.17.6, (c) 2007-2015 Lantiq Beteiligungs-GmbH & Co. KG [ 14.841713] [ 14.841713] [ 14.841713] Lantiq CPE API Driver version: DSL CPE API V4.17.18.6 [ 14.859467] [ 14.859467] Predefined debug level: 3 [ 14.911081] Infineon Technologies DEU driver version 2.0.0 [ 14.918391] IFX DEU DES initialized (multiblock). [ 14.925936] IFX DEU AES initialized (multiblock). [ 14.930361] IFX DEU ARC4 initialized (multiblock). [ 14.934530] IFX DEU SHA1 initialized. [ 14.938265] IFX DEU MD5 initialized. [ 14.941744] IFX DEU SHA1_HMAC initialized. [ 14.945830] IFX DEU MD5_HMAC initialized. [ 14.976821] usbcore: registered new interface driver usbserial_generic [ 14.982275] usbserial: USB Serial support registered for generic [ 15.015315] xt_time: kernel timezone is -0000 [ 15.021531] usbcore: registered new interface driver ch341 [ 15.025828] usbserial: USB Serial support registered for ch341-uart [ 15.039548] usbcore: registered new interface driver cp210x [ 15.043930] usbserial: USB Serial support registered for cp210x [ 15.060897] usbcore: registered new interface driver ftdi_sio [ 15.065438] usbserial: USB Serial support registered for FTDI USB Serial Device [ 15.100609] urngd: v1.0.2 started. [ 15.165526] kmodloader: done loading kernel modules from /etc/modules.d/* [ 38.051204] device eth0 entered promiscuous mode [ 38.070334] gswip 1e108000.switch lan1: configuring for phy/internal link mode [ 38.081468] 8021q: adding VLAN 0 to HW filter on device lan1 [ 38.086570] br-lan: port 1(lan1) entered blocking state [ 38.091308] br-lan: port 1(lan1) entered disabled state [ 38.103550] device lan1 entered promiscuous mode [ 38.194771] gswip 1e108000.switch lan2: configuring for phy/internal link mode [ 38.207572] 8021q: adding VLAN 0 to HW filter on device lan2 [ 38.221702] br-lan: port 2(lan2) entered blocking state [ 38.225516] br-lan: port 2(lan2) entered disabled state [ 38.246553] device lan2 entered promiscuous mode [ 38.269411] gswip 1e108000.switch lan3: configuring for phy/rgmii-rxid link mode [ 38.282310] 8021q: adding VLAN 0 to HW filter on device lan3 [ 38.289931] br-lan: port 3(lan3) entered blocking state [ 38.293729] br-lan: port 3(lan3) entered disabled state [ 38.317252] device lan3 entered promiscuous mode [ 38.345757] gswip 1e108000.switch lan4: configuring for phy/rgmii-rxid link mode [ 38.354740] 8021q: adding VLAN 0 to HW filter on device lan4 [ 38.361642] br-lan: port 4(lan4) entered blocking state [ 38.365521] br-lan: port 4(lan4) entered disabled state [ 38.373036] device lan4 entered promiscuous mode [ 38.405690] gswip 1e108000.switch lan5: configuring for fixed/rgmii link mode [ 38.411891] 8021q: adding VLAN 0 to HW filter on device lan5 [ 38.417292] gswip 1e108000.switch lan5: Link is Up - 1Gbps/Full - flow control off [ 38.447657] br-lan: port 5(lan5) entered blocking state [ 38.451456] br-lan: port 5(lan5) entered disabled state [ 38.458020] device lan5 entered promiscuous mode [ 38.461804] br-lan: port 5(lan5) entered blocking state [ 38.466554] br-lan: port 5(lan5) entered forwarding state [ 38.472511] IPv6: ADDRCONF(NETDEV_CHANGE): br-lan: link becomes ready [ 41.227987] gswip 1e108000.switch lan1: Link is Up - 1Gbps/Full - flow control rx/tx [ 41.234397] br-lan: port 1(lan1) entered blocking state [ 41.239923] br-lan: port 1(lan1) entered forwarding state


[ 0.000000] Linux version 5.10.64 (linuxinside@pluto) (mips-openwrt-linux-musl-gcc (OpenWrt GCC 10.3.0 r17573-14e2b33771) 10.3.0, GNU ld (GNU Binutils) 2.36.1) #0 Tue Sep 14 14:14:05 2021 [ 0.000000] printk: bootconsole [early0] enabled [ 0.000000] CPU0 revision is: 00019750 (MIPS 74Kc) [ 0.000000] MIPS: machine is AVM FRITZ!Box x490 WASP (Wireless Assist) [ 0.000000] SoC: Qualcomm Atheros QCA9558 ver 1 rev 0 [ 0.000000] Initrd not found or empty - disabling initrd [ 0.000000] Primary instruction cache 64kB, VIPT, 4-way, linesize 32 bytes. [ 0.000000] Primary data cache 32kB, 4-way, VIPT, cache aliases, linesize 32 bytes [ 0.000000] Zone ranges: [ 0.000000] Normal [mem 0x0000000000000000-0x0000000007ffffff] [ 0.000000] Movable zone start for each node [ 0.000000] Early memory node ranges [ 0.000000] node 0: [mem 0x0000000000000000-0x0000000007ffffff] [ 0.000000] Initmem setup node 0 [mem 0x0000000000000000-0x0000000007ffffff] [ 0.000000] On node 0 totalpages: 32768 [ 0.000000] Normal zone: 288 pages used for memmap [ 0.000000] Normal zone: 0 pages reserved [ 0.000000] Normal zone: 32768 pages, LIFO batch:7 [ 0.000000] pcpu-alloc: s0 r0 d32768 u32768 alloc=1*32768 [ 0.000000] pcpu-alloc: [0] 0 [ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 32480 [ 0.000000] Kernel command line: console=ttyS0,115200n8 rootfstype=squashfs,jffs2 [ 0.000000] Dentry cache hash table entries: 16384 (order: 4, 65536 bytes, linear) [ 0.000000] Inode-cache hash table entries: 8192 (order: 3, 32768 bytes, linear) [ 0.000000] Writing ErrCtl register=00000000 [ 0.000000] Readback ErrCtl register=00000000 [ 0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off [ 0.000000] Memory: 118224K/131072K available (5425K kernel code, 595K rwdata, 1204K rodata, 4096K init, 201K bss, 12848K reserved, 0K cma-reserved) [ 0.000000] SLUB: HWalign=32, Order=0-3, MinObjects=0, CPUs=1, Nodes=1 [ 0.000000] NR_IRQS: 51 [ 0.000000] random: get_random_bytes called from start_kernel+0x3c4/0x5b4 with crng_init=0 [ 0.000000] CPU clock: 720.000 MHz [ 0.000000] clocksource: MIPS: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 5309056796 ns [ 0.000007] sched_clock: 32 bits at 360MHz, resolution 2ns, wraps every 5965232126ns [ 0.008290] Calibrating delay loop... 358.80 BogoMIPS (lpj=1794048) [ 0.074978] pid_max: default: 32768 minimum: 301 [ 0.080030] Mount-cache hash table entries: 1024 (order: 0, 4096 bytes, linear) [ 0.087802] Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes, linear) [ 0.097606] dyndbg: Ignore empty _ddebug table in a CONFIG_DYNAMIC_DEBUG_CORE build [ 0.107796] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns [ 0.118296] futex hash table entries: 256 (order: -1, 3072 bytes, linear) [ 0.125618] pinctrl core: initialized pinctrl subsystem [ 0.132006] NET: Registered protocol family 16 [ 0.180928] clocksource: Switched to clocksource MIPS [ 0.187315] NET: Registered protocol family 2 [ 0.192118] IP idents hash table entries: 2048 (order: 2, 16384 bytes, linear) [ 0.200274] tcp_listen_portaddr_hash hash table entries: 512 (order: 0, 4096 bytes, linear) [ 0.209263] TCP established hash table entries: 1024 (order: 0, 4096 bytes, linear) [ 0.217428] TCP bind hash table entries: 1024 (order: 0, 4096 bytes, linear) [ 0.224942] TCP: Hash tables configured (established 1024 bind 1024) [ 0.231820] UDP hash table entries: 256 (order: 0, 4096 bytes, linear) [ 0.238785] UDP-Lite hash table entries: 256 (order: 0, 4096 bytes, linear) [ 0.246468] NET: Registered protocol family 1 [ 0.251165] PCI: CLS 0 bytes, default 32 [ 2.387318] workingset: timestamp_bits=14 max_order=15 bucket_order=1 [ 2.397780] squashfs: version 4.0 (2009/01/31) Phillip Lougher [ 2.404037] jffs2: version 2.2 (NAND) (SUMMARY) (LZMA) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc. [ 2.417781] pinctrl-single 1804002c.pinmux: 544 pins, size 68 [ 2.424807] Serial: 8250/16550 driver, 1 ports, IRQ sharing disabled [ 2.432227] printk: console [ttyS0] disabled [ 2.436833] 18020000.uart: ttyS0 at MMIO 0x18020000 (irq = 9, base_baud = 2500000) is a 16550A [ 2.446053] printk: console [ttyS0] enabled [ 2.454955] printk: bootconsole [early0] disabled [ 2.467787] libphy: Fixed MDIO Bus: probed [ 2.474971] ag71xx 19000000.eth: invalid MAC address, using random address [ 2.570924] random: fast init done [ 2.838750] ag71xx 19000000.eth: connected to PHY at fixed-0:00 [uid=00000000, driver=Generic PHY] [ 2.848395] eth0: Atheros AG71xx at 0xb9000000, irq 4, mode: rgmii [ 2.854855] i2c /dev entries driver [ 2.859486] NET: Registered protocol family 10 [ 2.868423] Segment Routing with IPv6 [ 2.872292] NET: Registered protocol family 17 [ 2.876862] 8021q: 802.1Q VLAN Support v1.8 [ 2.881811] PCI host bridge /ahb/pcie-controller@180c0000 ranges: [ 2.888026] MEM 0x0000000010000000..0x0000000011ffffff [ 2.893374] IO 0x0000000000000000..0x0000000000000000 [ 2.898829] PCI host bridge to bus 0000:00 [ 2.903023] pci_bus 0000:00: root bus resource [mem 0x10000000-0x11ffffff] [ 2.909994] pci_bus 0000:00: root bus resource [io 0x0000] [ 2.915658] pci_bus 0000:00: root bus resource [??? 0x00000000 flags 0x0] [ 2.922555] pci_bus 0000:00: No busn resource found for root bus, will use [bus 00-ff] [ 2.930634] pci 0000:00:00.0: [168c:003c] type 00 class 0x028000 [ 2.936778] pci 0000:00:00.0: reg 0x10: [mem 0x00000000-0x001fffff 64bit] [ 2.943721] pci 0000:00:00.0: reg 0x30: [mem 0x00000000-0x0000ffff pref] [ 2.950588] pci 0000:00:00.0: supports D1 [ 2.954665] pci 0000:00:00.0: PME# supported from D0 D1 D3hot [ 2.961310] pci_bus 0000:00: busn_res: [bus 00-ff] end is updated to 00 [ 2.968038] pci 0000:00:00.0: BAR 0: assigned [mem 0x10000000-0x101fffff 64bit] [ 2.975489] pci 0000:00:00.0: BAR 6: assigned [mem 0x10200000-0x1020ffff pref] [ 2.999973] Freeing unused kernel memory: 4096K [ 3.004606] This architecture does not have kernel memory protection. [ 3.011157] Run /init as init process [ 3.014867] with arguments: [ 3.014872] /init [ 3.014875] with environment: [ 3.014879] HOME=/ [ 3.014883] TERM=linux [ 3.336257] init: Console is alive [ 3.339908] init: - watchdog - [ 3.359910] kmodloader: loading kernel modules from /etc/modules-boot.d/* [ 3.368853] kmodloader: done loading kernel modules from /etc/modules-boot.d/* [ 3.387296] init: - preinit - [ 3.615342] random: jshn: uninitialized urandom read (4 bytes read) [ 3.734093] random: jshn: uninitialized urandom read (4 bytes read) [ 3.773384] random: jshn: uninitialized urandom read (4 bytes read) [ 3.941770] eth0: link up (1000Mbps/Full duplex) [ 3.951103] IPv6: ADDRCONF(NETDEV_CHANGE): eth0: link becomes ready [ 8.058008] WASP Downloader: Trying to download from eth0 [ 8.067575] AVM WASP Config downloader. [ 8.071642] device eth0 entered promiscuous mode [ 8.077710] Using file: /tmp/overlay.tar.gz [ 8.077710] Using Dev : eth0 [ 8.205489] eth0: link down [ 8.218561] procd: - early - [ 8.221680] procd: - watchdog - [ 8.743910] procd: - watchdog - [ 8.747427] procd: - ubus - [ 8.757375] urandom_read: 4 callbacks suppressed [ 8.757383] random: ubusd: uninitialized urandom read (4 bytes read) [ 8.800843] random: ubusd: uninitialized urandom read (4 bytes read) [ 8.807707] random: ubusd: uninitialized urandom read (4 bytes read) [ 8.816050] procd: - init - [ 9.356791] kmodloader: loading kernel modules from /etc/modules.d/* [ 9.739286] urngd: v1.0.2 started. [ 9.850978] Loading modules backported from Linux version v5.10.42-0-g65859eca4dff [ 9.858665] Backport generated by backports.git v5.10.42-1-0-gbee5c545 [ 9.909161] xt_time: kernel timezone is -0000 [ 9.992919] random: crng init done [ 10.106284] ath10k 5.10 driver, optimized for CT firmware, probing pci device: 0x3c. [ 10.131677] ath10k_pci 0000:00:00.0: enabling device (0000 -> 0002) [ 10.138193] ath10k_pci 0000:00:00.0: pci irq legacy oper_irq_mode 1 irq_mode 0 reset_mode 0 [ 11.777745] ath10k_pci 0000:00:00.0: qca988x hw2.0 target 0x4100016c chip_id 0x043202ff sub 0000:0000 [ 11.787147] ath10k_pci 0000:00:00.0: kconfig debug 0 debugfs 1 tracing 0 dfs 1 testmode 0 [ 11.799061] ath10k_pci 0000:00:00.0: firmware ver 10.1-ct-8x-__fH-022-ecad3248 api 2 features wmi-10.x,mfp,txstatus-noack,wmi-10.x-CT,ratemask-CT,txrate-CT,get-temp-CT,tx-rc-CT,cust-stats-CT,retry-gt2-CT,txrate2-CT,beacon-cb-CT,wmi-block-ack-CT crc32 1b2a161c [ 12.151044] ath10k_pci 0000:00:00.0: board_file api 1 bmi_id N/A crc32 bebc7c08 [ 13.100647] ath10k_pci 0000:00:00.0: 10.1 wmi init: vdevs: 16 peers: 127 tid: 256 [ 13.117270] ath10k_pci 0000:00:00.0: wmi print 'P 128 V 8 T 410' [ 13.123620] ath10k_pci 0000:00:00.0: wmi print 'msdu-desc: 1424 sw-crypt: 0 ct-sta: 0' [ 13.131763] ath10k_pci 0000:00:00.0: wmi print 'alloc rem: 25000 iram: 38944' [ 13.181405] ath10k_pci 0000:00:00.0: htt-ver 2.2 wmi-op 2 htt-op 2 cal file max-sta 128 raw 0 hwcrypto 1 [ 13.194270] ath10k_pci 0000:00:00.0: NOTE: Firmware DBGLOG output disabled in debug_mask: 0x10000000 [ 13.334208] ath: EEPROM regdomain: 0x8114 [ 13.334218] ath: EEPROM indicates we should expect a country code [ 13.334225] ath: doing EEPROM country->regdmn map search [ 13.334231] ath: country maps to regdmn code: 0x37 [ 13.334238] ath: Country alpha2 being used: DE [ 13.334243] ath: Regpair used: 0x37 [ 13.395092] ath: EEPROM regdomain sanitized [ 13.395106] ath: EEPROM regdomain: 0x64 [ 13.395111] ath: EEPROM indicates we should expect a direct regpair map [ 13.395130] ath: Country alpha2 being used: 00 [ 13.395135] ath: Regpair used: 0x64 [ 13.411547] ieee80211 phy1: Selected rate control algorithm 'minstrel_ht' [ 13.413254] ieee80211 phy1: Atheros AR9550 Rev:0 mem=0xb8100000, irq=13 [ 13.451336] kmodloader: done loading kernel modules from /etc/modules.d/* [ 40.511205] eth0: link up (1000Mbps/Full duplex) [ 40.521206] br-lan: port 1(eth0) entered blocking state [ 40.526518] br-lan: port 1(eth0) entered disabled state [ 40.547046] br-lan: port 1(eth0) entered blocking state [ 40.552394] br-lan: port 1(eth0) entered forwarding state [ 41.541036] IPv6: ADDRCONF(NETDEV_CHANGE): br-lan: link becomes ready [ 44.007248] ath10k_pci 0000:00:00.0: 10.1 wmi init: vdevs: 16 peers: 127 tid: 256 [ 44.023898] ath10k_pci 0000:00:00.0: wmi print 'P 128 V 8 T 410' [ 44.030219] ath10k_pci 0000:00:00.0: wmi print 'msdu-desc: 1424 sw-crypt: 0 ct-sta: 0' [ 44.038390] ath10k_pci 0000:00:00.0: wmi print 'alloc rem: 25000 iram: 38944' [ 44.101213] ath10k_pci 0000:00:00.0: pdev param 0 not supported by firmware [ 44.115388] ath10k_pci 0000:00:00.0: rts threshold -1 [ 44.126492] br-lan: port 2(wlan0) entered blocking state [ 44.131938] br-lan: port 2(wlan0) entered disabled state [ 44.137594] device wlan0 entered promiscuous mode [ 44.214365] br-lan: port 3(wlan1) entered blocking state [ 44.219763] br-lan: port 3(wlan1) entered disabled state [ 44.225455] device wlan1 entered promiscuous mode [ 44.230324] br-lan: port 3(wlan1) entered blocking state [ 44.235771] br-lan: port 3(wlan1) entered forwarding state [ 44.619066] IPv6: ADDRCONF(NETDEV_CHANGE): wlan1: link becomes ready [ 62.200784] IPv6: ADDRCONF(NETDEV_CHANGE): wlan0: link becomes ready [ 62.207461] br-lan: port 2(wlan0) entered blocking state [ 62.212905] br-lan: port 2(wlan0) entered forwarding state
